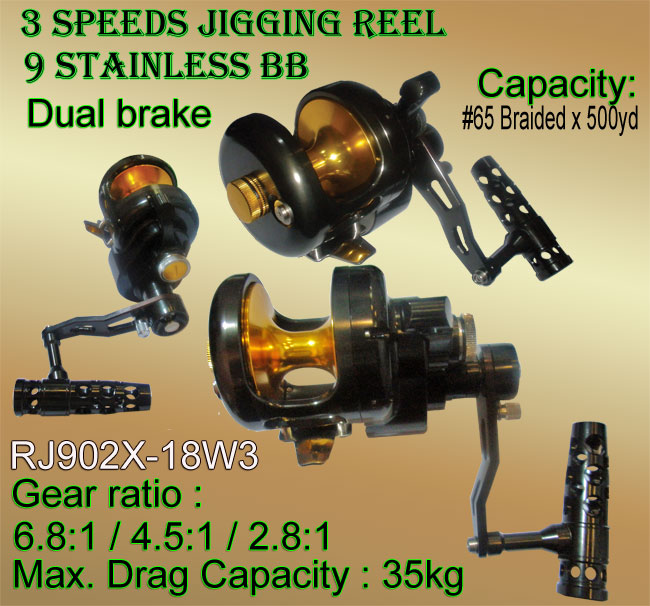

3 speed jigging reel:9bb
Jigging reel RJ902X with
Dual drag
system
Code |
Capacity lb/yd
|
RJ902X-18W3 (R/L) |
65lb/500yd
|
Gear ratio: 6.8:1 / 4.5:1 / 2.8:1 |
Push button change gear system |
Jigging reel with preventive overdrag system |
Jigging reel available in Left orRight cranking |

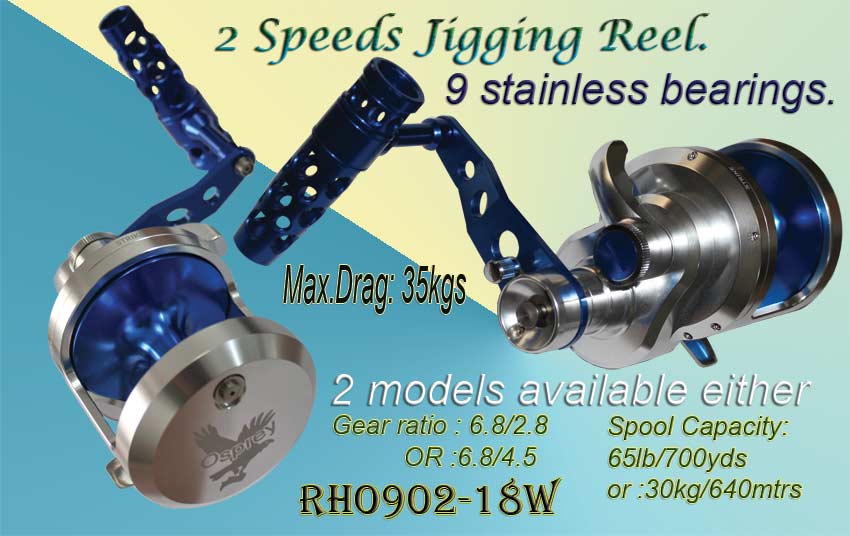

2 speed jigging reel:9bb Jigging reels
Dual drag system
Code |
Capacity lb/yd
|
RHO902-18W-6.8/3.7 |
65lb/700yd
or 30
kg/640m |
RHO902-18W-6.8/4.5 |
Gear ratio: 6.8:1/3.7:1.OR
6.8:1/4.5:1 |
Push button change gear system |
Jigging reel with preventive overdrag system |
Jigging reel : MAX drag:35kg/67lb |

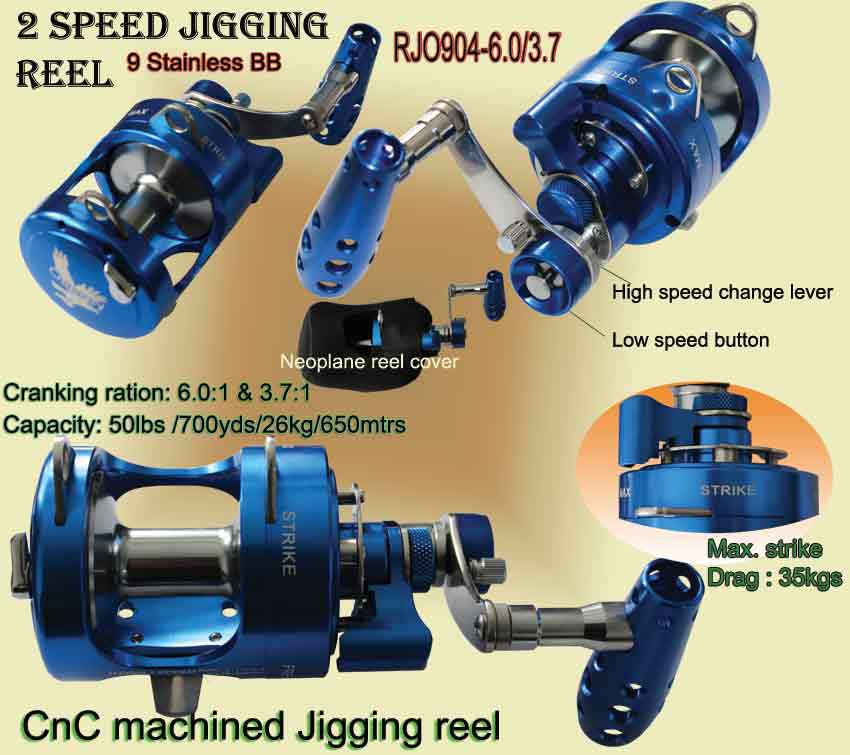

2 speed jigging reel:9bb. Jigging reels
Dual drag system
Code |
Capacity-lb/yd
|
RJ0904-6.0/3.7 |
50lb/700yd or 25
kg/630m |
Gear ratio: 6.0:1 & 3.7:1. |
Push button change gear system |
Jigging reel with preventive overdrag system |
Jigging reel : MAX drag:30kg/67lb |
|

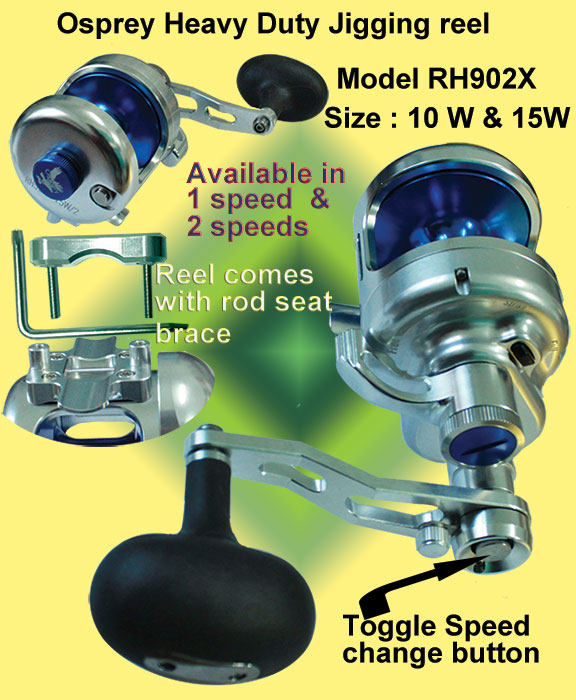

1 & 2 speed jigging reels:9bb.
Jigging reel Max
Drag:30kg/67lb
RH902X-1 speed. .RH902X2- 2speeds
Code |
Capacity-mm/mtr
& lb/yd
|
RH902X(2)-10W |
40/350yd or 50lb
/310yd
18kg/310m or 22kg/280m |
RH902X(2)-15W |
40/500yd or 60lb /330yd 18kg/450m or 27kg/300m |
Gear ratio: 5.0:1 &
3.0:1. Dual drag system |
Push button change gear system |
Jigging reel with preventive overdrag system |
Jigging reel with Stainless components |
Spool dimensions:
10W=52.4mm(dia) x 32mm wide
15W=52.4mm ( dia) x 42mm wide |

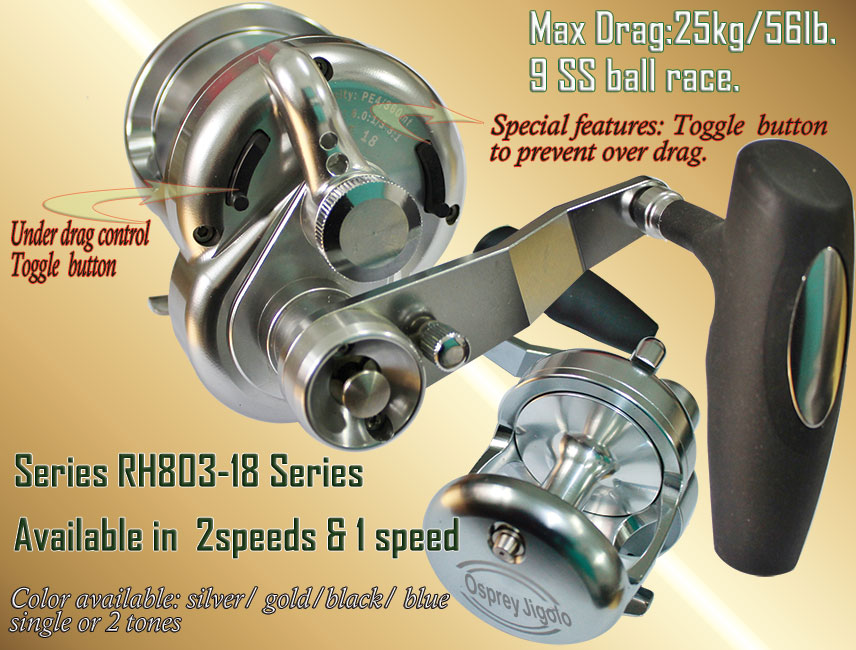

9 SS bb Full alu. alloy frame and side
plate.
Stainless gears GR: 6.1: 1.
max drag -25kg Jigging reels- 1 or 2
speeds
Code NO |
Line capacity |
Spool dia x width
|
RH803-18W/1 |
30lb/750yd
65lb/650yd- |
60mm x50.5m |
RH803-18W/2 |
Right/left hand--1 speed and 2 speeds
1 speed18W/1=6.1:1. 2
speeds18W/2=6.1:1/3.3:1
|

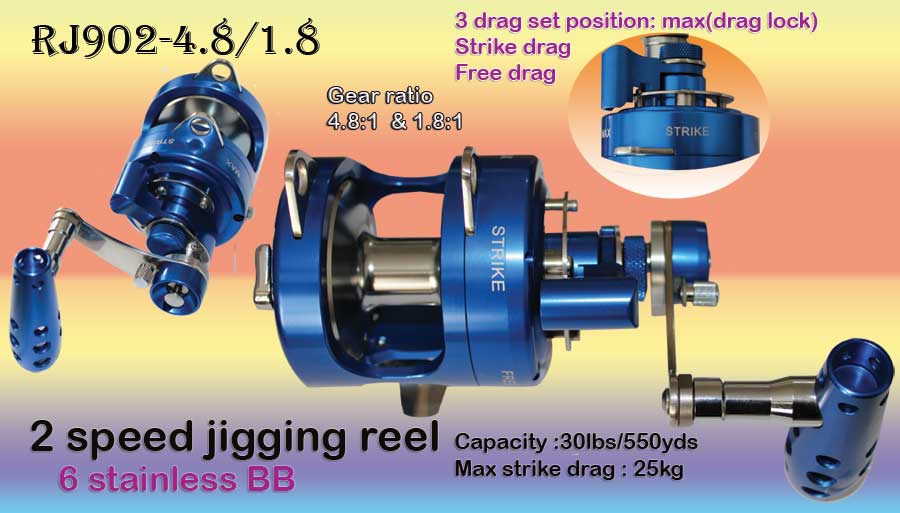

2 speed jigging reels:9bb
Jigging reels Max Drag:35kg/70lb
Code |
Capacity-mm/mtr
&lb/yd
|
RJ902-4.8/1.8 |
30lb/550yd or 15
kg/500m |
Gear ratio: 4.8:1 & 1.8:1. |
Push button change gear system |
Jigging reel with preventive overdrag system |
Jigging reel with Stainless components |
|
1 speed jigging reels:9+2bb SS bb
Special auto lock adjustable
handle.
Code |
Capacity lb/yd
|
RJ15WEX |
30lb/350yd, 0.24/320m
|
Gear ratio: 6.3:1. Max drag:23kg/52lb |
Adjustable drag lever travel distance. |
Jigging reel with preventive overdrag system |
Jigging reel available in Leftor
Right cranking |
Auto lock adjustable handle length. |

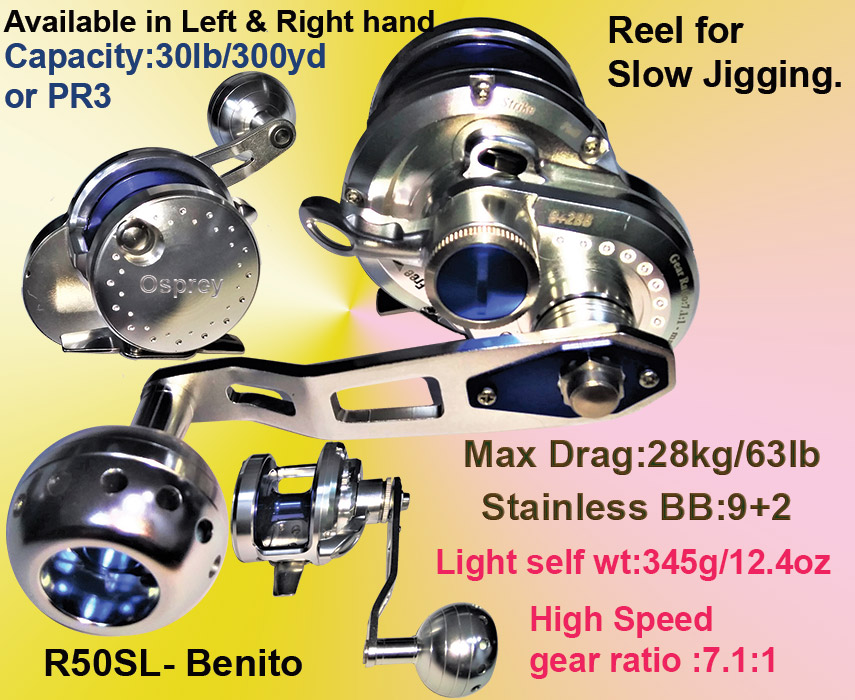

1 speed jigging reels:9+2bb SS bb
Super high speed Jigging
reels Dual drag
system
Code |
Capacity lb/yd
|
R50SL (R/L) |
30lb/300yd
|
Gear ratio: 7.1:1 |
Adjustable drag lever travel distance. |
Jigging reel with preventive overdrag system |
Jigging reel available in Left or
Right crank |
Super light self
weight jigging reel for slow Jigging
and Deep-water jigging
Deep water Jigging reels with 9 stainless BB.
Code |
Capacity-mm/mtr
lb/yd
|
RD500D |
65lb/600yd. or PE6.5/540m
|
RD600D |
80/480yd or PE8/430m
|
RD800D |
80/600yd or PE8/550m |
Max drag: #500- 55lb/25kg, #600-66lb/30kg
#800-66lb/30kg Dual drag system |
Gear
ratio #500-6.0/3.0, #600-5.0/2.0,
#800-5.0/2.0 |
Nos. of BB: 7+2 stainless sealed BB |
Dimensions:
#500-- dia:70mm, #600-90mm, #800-98mm Weight: #500-560g/19.7oz,
#600-860g/30.3oz,
#800-960g/33.7oz
#600 &800 comes with Harness lugs. |
|
